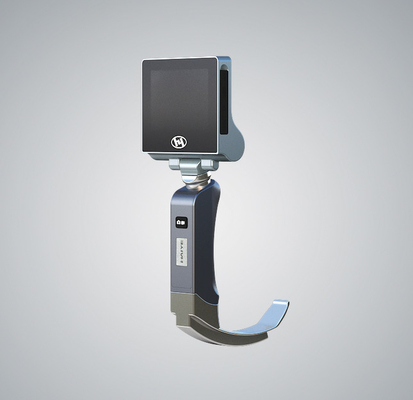

3-100mm Hospital Medico Electric Reusable Reusable Blade Device 5 Sizes MAC2 MAC4 MIL0 Visual Endoscope Laryngoscope

Technical Features

HYHJ-KC medical visual laryngoscope is a forward-looking product of our company. This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration,It is a tailor-made for the people's conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.

◆With high precision, full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;

◆With 3 inch TFT color display screen, and can Large angle rotation up and down, left and right;

◆The machine adopts imported high-capacity lithium battery, lasts for more than 300 minutes;

◆With pictures, video, freeze and other functions, and can store and export;

◆Unique dual anti fog function, that is, open and use, no preheating,intubation without blind area ;

◆With three different type of cameras , three different blades are available for adults, children and newborns.

◆Disposable packing and sterilizing of blade to prevent cross infection;

◆Mature, reliable, full-featured electronic solutions and high- definition digital camera system, with 3 inch TFT color display screen, the image restoration effect is good.

Technical Parameter

◆ Resolution :960×480

◆ Pixel :2 million

◆ Effective depth of field :3~100mm

◆ Field angle :70º±2°

◆ Battery life :≥6h

◆ Display: 3 "TFT color display screen

◆ Front and back rotation angle of display :0º~135º,Left and right rotation angle of display:0º~275º

◆ The light source built-in high power waterproof LED light source, and the illumination:≥3000lux

Working Environment

◆ Temperature :5℃~40℃

◆ Humidity:≤80%

◆ Atmospheric pressure :860hpa~1060hpa

◆ Charger input :100~240V,50/60Hz,0.35A

◆ Charger output :5V,2000mA

◆ Charging time :≤4h

Xian HAIYE Medical Equipment Co., Ltd. is a high-tech medical Equipment manufacturer. We integrate science and technology, research and development, design, manufacture and sales.

Own our R&D center and Technical personnel, sterile production workshop, advanced production and inspection equipment. strict production management and inspection process, We always put "the pursuit of quality" in the first place, striving to implement the quality core value of "Quality Comes From Research and Development", so accurate analysis and control are strictly taken in each link of the research and design. Meanwhile, we exactly conform to the management system during the process of production, and bring the quality awareness into each procedure of product manufacture. For each detail from raw material, production integration and packaging to delivery, we have built strict quality standards and implemented them in effect.

We produce high quality video laryngoscope as a perfect solution for doctor in Anesthesia, ICU, Operation Room, and Emergency Rescue to handle all kinds of airway management problems.

Our company spares no effort in innovation, pursues our goal of "manufacture the product that can meet the demand of different customers", persists in the concept of "medical device internationalization", actively conforms to the modern enterprise management, enhances the management, pursues outstanding achievement, and elaborately creates the HAIYE brand. Our company attaches great importance to quality, insists on honesty, and tries our best to manufacture and design advanced and applicable medical products of excellent quality.

Packaging Details : Carton, Standard export packing for video laryngoscope

An entire set of KC standard equipment contain :

1x Main machine

1x Camera system

1x Disposable laryngoscope blade or reusable laryngoscope blade option (KC with 5 size blades)

1x Charger

1x Suit case

1x Operation manual and warranty card

Delivery Time :Shipped in 7 days after payment
Shipping terms :by express /by air/by sea.

Q: Are you Manufacturer??
A: We are professional manufacturer of video Laryngoscope in china over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.

Q: Whats your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.

Q: Can we replace disposable and reusable blade?
A: main machine is the same, you can match our disposable or reusable freely.

Q: Whats your warranty?
A: we offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
We have profeesional sales team, contact us to get more details consult if you are interested in our video laryngoscope.
